Best visibility on rubber – the Z-LASER ZD-520 green

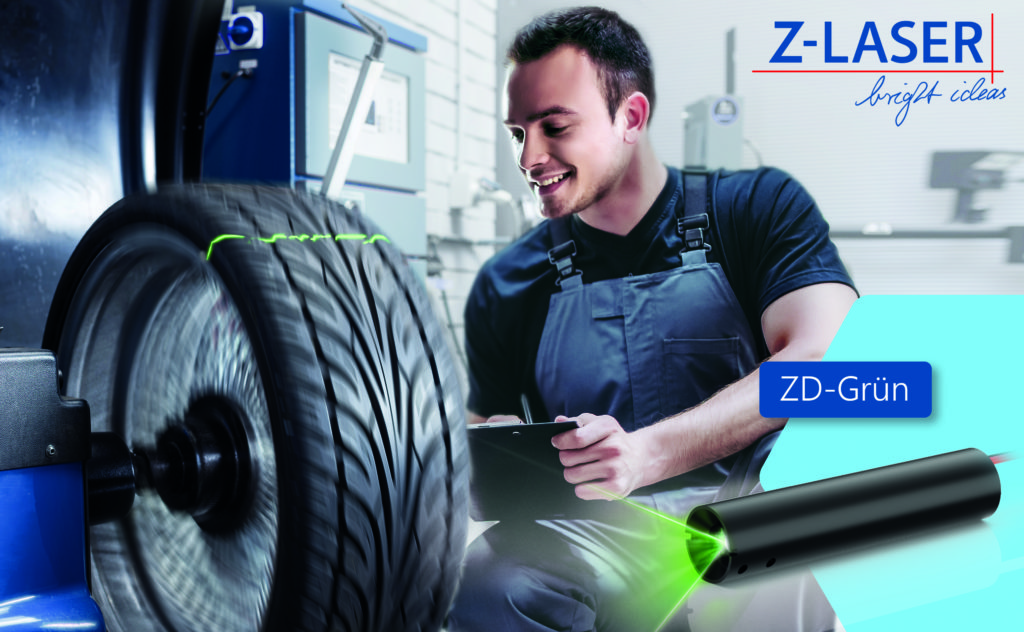

Z-Laser from Freiburg has always taken the needs of its customers seriously and kept a close eye on the market; this is also reflected in the ZD laser series: more than twenty years since its market launch, the popular laser family is now also available with a green diode. The ZD-520 green positioning laser is a mini laser module and can project either lines, dots or crosses; an optimized fixed focus or special OEM cable variants are also available. With a diameter of only 11 mm, it can be used universally and is ideal for use in the tire industry.

The model can be operated either with a WPSB plug-in power supply, an external battery or directly with 24 V DC machine voltage and integrated into existing production environments. A big advantage of the ZD-520 green is its visibility: Especially on dark Oberflächen or in bright surroundings you can see the green projection 2-3 times better than the red visualization. Visibility is also very good for materials with high absorption rates that do not respond well to typical IR wavelengths, as well as for reflektierenden materials such as copper or gold.

For further information visit us at Tire technology EXPO 2020 at Booth 2024 or our website www.z-laser.de
